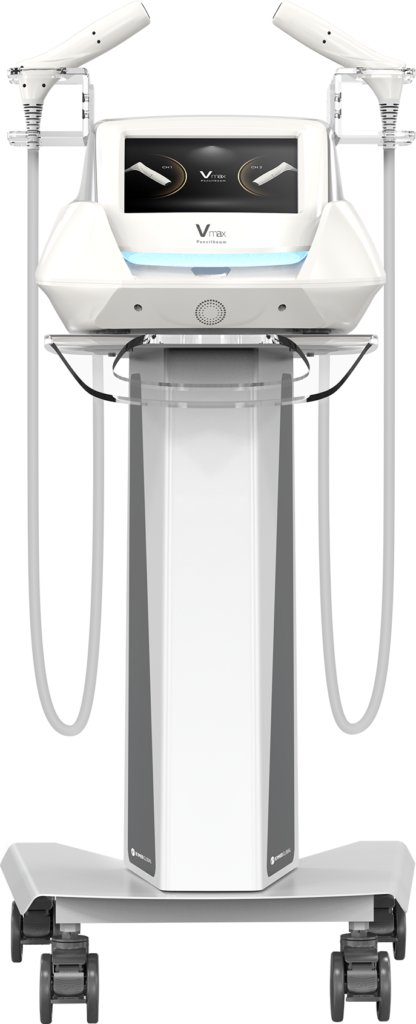

V-MAX PENCILBEAM
Real Linear Focused Ultrasound · Facial & Body Lifting
V-MAX Pencilbeam is a focused ultrasound-based lifting device with a pen-type design that allows precise, targeted treatment. Equipped with 3.0mm and 4.5mm depth facial handpieces (1.5mm optional) and an optional 9.0mm body handpiece, it covers both the dermis and fat layers with clinical precision.

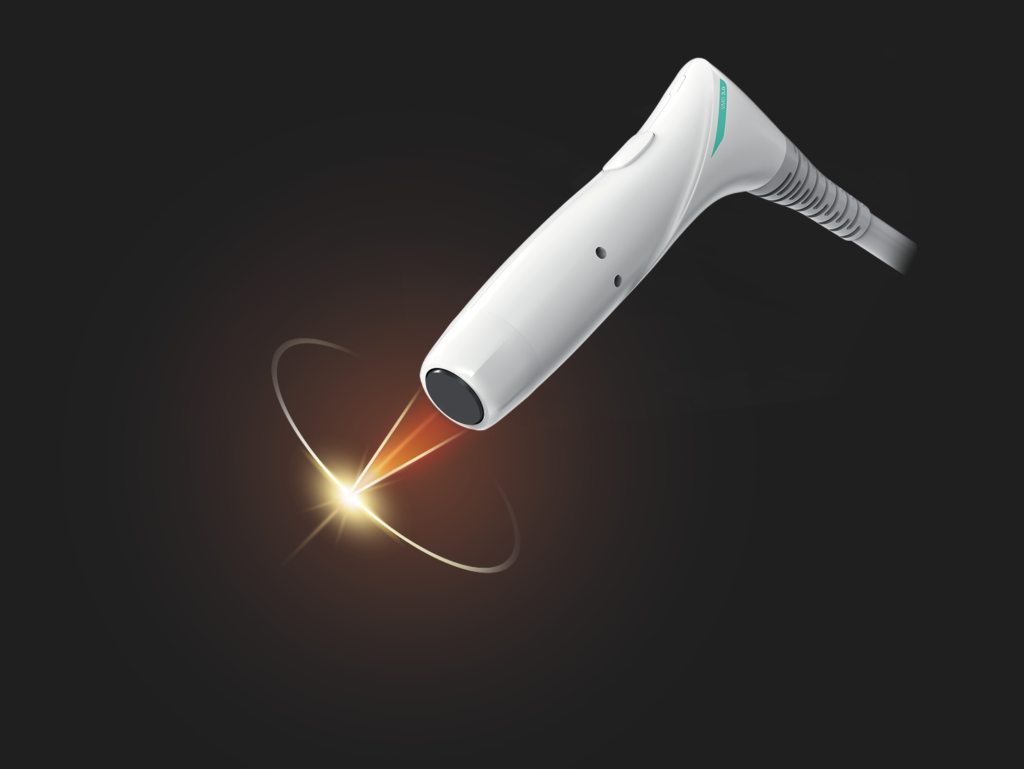

01. Pen-Type Focused Ultrasound Handpiece
Multiple depth options give operators full control over the treatment plane:
- 1.5mm (optional) — superficial dermis
- 3.0mm — mid-dermis
- 4.5mm — SMAS layer
- 9.0mm (optional) — body fat layer
The pen-type form factor allows precise treatment in localized and hard-to-reach areas.
Real Linear vs. Like Linear
Conventional Focused Ultrasound devices use a “Like Linear” method that switches on and off according to frequency. V-MAX Pencilbeam uses Real Linear Focused Ultrasound to deliver continuous, consistent ultrasonic energy across the entire application line.
The result:
- Higher energy output
- Faster treatment times (more than 2× faster)
- Enhanced aesthetic performance
What is focused ultrasound?
Focused Ultrasound focuses ultrasonic energy into a single point, generating 65–100°C of concentrated heat to coagulate targeted tissue. In aesthetics, that target is the SMAS and fat layer — driving lifting effects and fat decomposition without surgery.

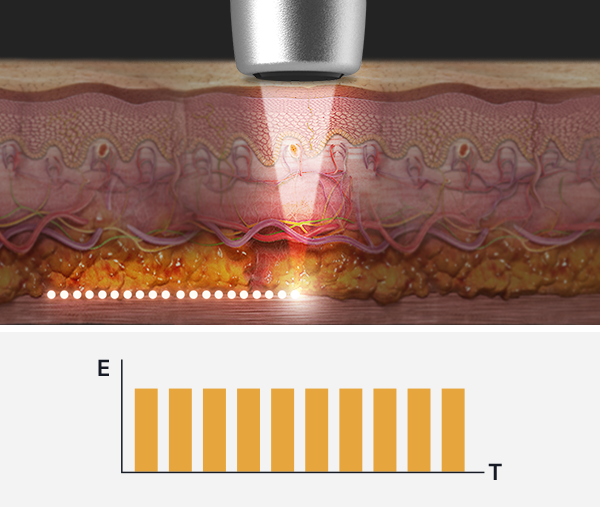

Like Linear
General Focused Ultrasound

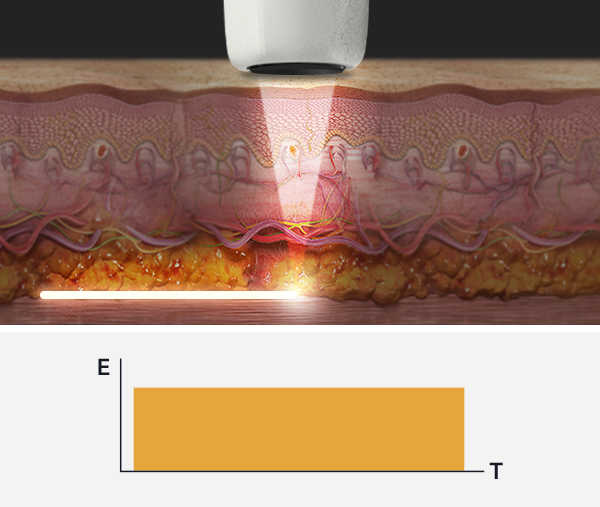

REAL Linear
V-MAX Pencilbeam Focused Ultrasound

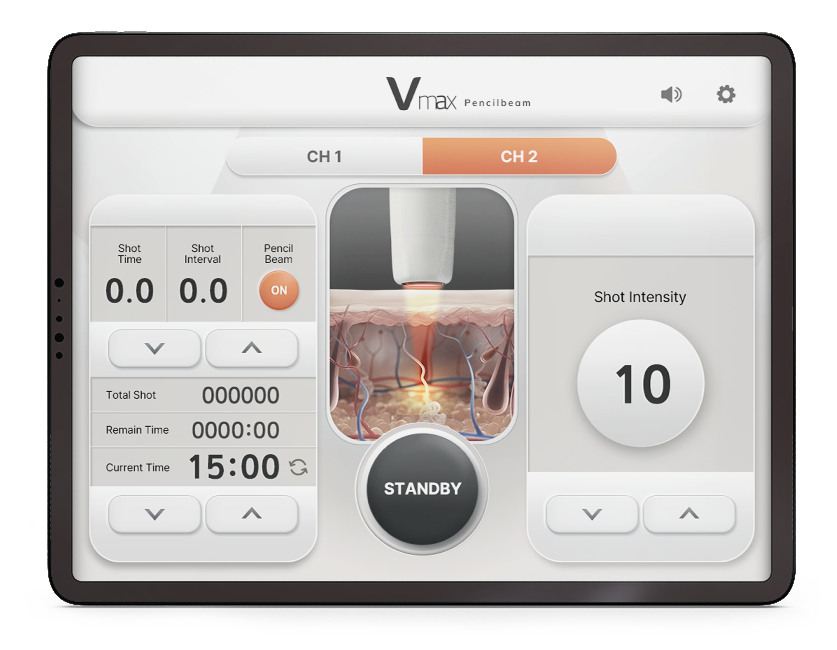

User Interface
An intuitive UI puts intensity, time, and treatment parameters right at your fingertips.
Key Features
Semi-permanent handpiece with water-cooling circulation
Pen-type design for precise localized treatment
Real Linear method maximizes clinical effect
Treatment time reduced by more than half
Specifications
Energy Type | Ultrasound |
Dimensions | W396 × D528 × H328 mm |
Weight | 7.5 kg |
